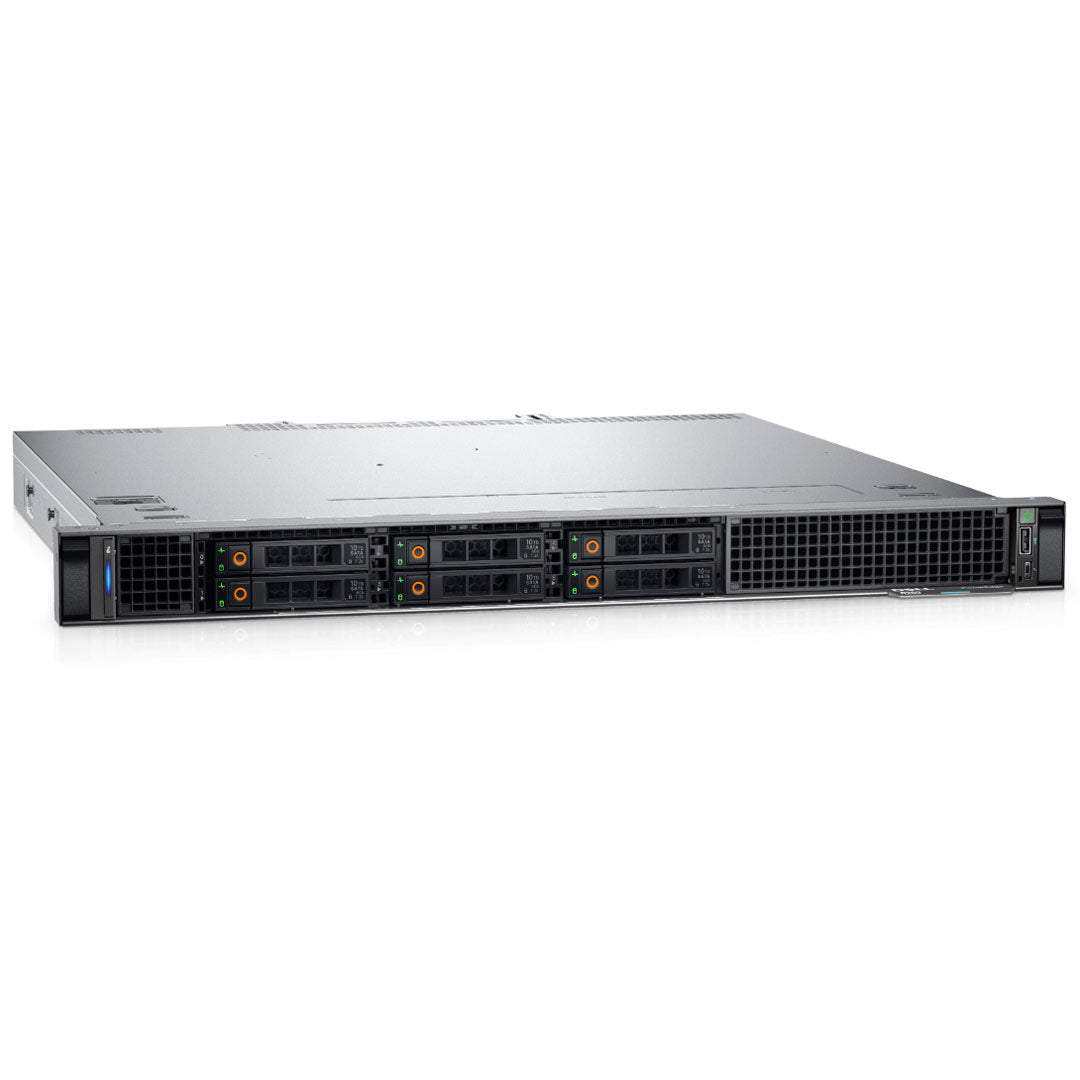

The Dell PowerEdge R260 is a compact 1U rack server powered by Dell’s iDRAC9 lifecycle management. This configuration pairs Intel Xeon 6 6315P with 16GB (1x16GB) of DDR5-5600 memory and 1x 2tb sata 7.2k 3.5″ cabled hdd, driven by No RAID (embedded SATA) and 2x 1GbE (Broadcom 5720 LOM) networking. With 700W Titanium power and 2 x 3.5″ (cabled) drive bays, it is well suited to edge sites, SMB infrastructure and dedicated applications where rack space is tight. Delivered brand new and ready to deploy.
Technical Specifications
| Brand | Dell |
|---|---|
| Condition | New |
| Form Factor | 1U Rack |
| Processor | Intel Xeon 6 6315P (4C / 4T, 2.8 GHz) |
| Sockets | 1 |
| Total Cores | 4 |
| RAM Installed | 16GB (1x16GB) |
| RAM Type | DDR5-5600 UDIMM ECC |
| Max RAM | 128GB (4 DIMM slots) |
| Drive Bays | 2 x 3.5″ (cabled) |
| Storage Config | 1x 2TB SATA 7.2K 3.5″ Cabled HDD |
| RAID Controller | No RAID (embedded SATA) |
| GPU | Not installed |
| Network Ports | 2x 1GbE (Broadcom 5720 LOM) |
| Power Supply | 700W Titanium |
| Management | iDRAC9 Enterprise 16G |
| OS Support | Windows Server 2022/2025, Red Hat Enterprise Linux, SUSE, VMware ESXi, Ubuntu |
| Dimensions | approx. 60.0 x 43.4 x 4.3 cm (D x W x H) |
| Weight | approx. 12 kg |
| Warranty | 1-Year Warranty |
